General
Purpose Plastic Enclosures (EID-1591
Series) Flame
Retardant ABS Plastic Version

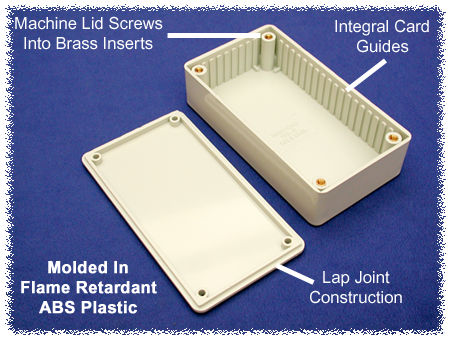

Features
and benefits:
-
Ideally
suited for mounting printed circuit boards.
-
Integral
card guides accept 1.5 mm (0.062”) P.C. cards.
-
Lap
joint construction provides protection against access of
dust and splashing water.
-
-
Molded
from flame retardant ABS plastic
(material carries a UL flammability rating of 94V-0).
-
Lid
is secured with M3 x 10 mm Philips machine screws,
threaded into integral brass bushings. Perfect for
applications with repetitive assembly and disassembly are
required.
|
Part Number
|
Color
|
1-9
|
10-49
|
50-99
|
99-1K
|
Units
|
Length
|
Width
|
Enclosure
Depth (Less Lid)
|
|
EID-1591MBG
EID-1591MBK
EID-1591MBU
EID-1591MGY
|

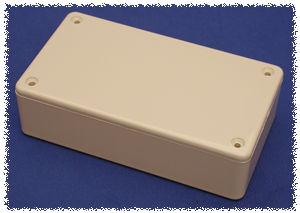

Beige

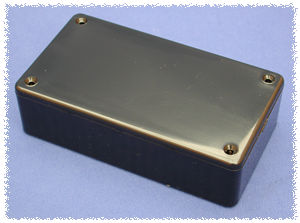

Black

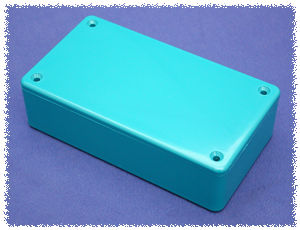

Blue

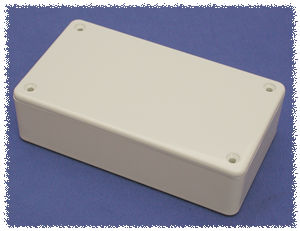

Grey
|
|
|
|
|
Inches
|
3.3
|
2.2
|
0.8
|
|
mm
|
85
|
56
|
21
|
|
EID-1591LBG
EID-1591LBK
EID-1591LBU
EID-1591LGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
3.3
|
2.2
|
1.4
|
|
mm
|
85
|
56
|
35
|
|
EID-1591ABG
EID-1591ABK
EID-1591ABU
EID-1591AGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
3.9
|
2.0
|
0.8
|
|
mm
|
100
|
50
|
21
|
|
EID-1591SBG
EID-1591SBK
EID-1591SBU
EID-1591SGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.3
|
3.2
|
1.6
|
|
mm
|
110
|
82
|
40
|
|
EID-1591BBG
EID-1591BBK
EID-1591BBU
EID-1591BGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.4
|
2.4
|
1.1
|
|
mm
|
112
|
62
|
27
|
|
EID-1591CBG
EID-1591CBK
EID-1591CBU
EID-1591CGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.7
|
2.6
|
1.4
|
|
mm
|
120
|
65
|
36
|
|
EID-1591TBG
EID-1591TBK
EID-1591TBU
EID-1591TGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.7
|
3.2
|
2.2
|
|
mm
|
120
|
80
|
55
|
|
EID-1591UBG
EID-1591UBK
EID-1591UBU
EID-1591UGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.7
|
4.7
|
2.2
|
|
mm
|
120
|
120
|
55
|
|
EID-1591VBG
EID-1591VBK
EID-1591VBU
EID-1591VGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.7
|
4.7
|
3.5
|
|
mm
|
120
|
120
|
90
|
|
EID-1591GBG
EID-1591GBK
EID-1591GBU
EID-1591GGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
4.8
|
3.7
|
1.2
|
|
mm
|
121
|
94
|
30
|
|
EID-1591DBG
EID-1591DBK
EID-1591DBU
EID-1591DGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
5.9
|
3.2
|
1.8
|
|
mm
|
150
|
80
|
46
|
|
EID-1591HBG
EID-1591HBK
EID-1591HBU
EID-1591HGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
6.5
|
2.8
|
1.0
|
|
mm
|
165
|
71
|
25
|
|
EID-1591EBG
EID-1591EBK
EID-1591EBU
EID-1591EGY
|
Beige
Black
Blue
Grey
|
|
|
|
|
Inches
|
7.5
|
4.3
|
2.2
|
|
mm
|
191
|
110
|
57
|
Notes:
-
All
Dimensions in inches & mm
-
Add
0.16" (4 mm) to enclosure depth for lid
-
Flame
Retardant ABS Plastic in Beige, Black, Blue or
Grey
Accessories:

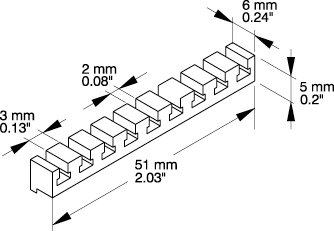

P.C.
Board Card Adaptors:
Part
Number EID-1591Z6 - Package of 6
Part Number EID-1591Z50 - Package of 50
Part Number EID-1591Z100 - Package of 100
Replacement Screws:
Part
Number EID-1591MS100 -
package of 100. M3 - 0.5 X 10mm
Belt
or Pocket Clip:
|
|
Black
- Part Number 1599CLIP
Grey (shown) - Part Number 1599CLIPGY
|

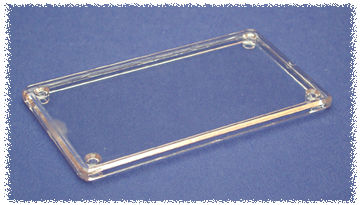

Clear
Lids:
Clear
Polycarbonate (flame retardant material):
Part
Number EID-1591LC - use with EID-1591L
series
Part Number EID-1591AC - use with EID-1591A series
Part Number EID-1591BC - use with EID-1591B series
Part Number EID-1591CC - use with EID-1591C series
Part Number EID-1591DC - use with EID-1591D series
Part Number EID-1591EC - use with EID-1591E series
Part Number EID-1591GC - use with EID-1591G series
Part Number EID-1591HC - use with EID-1591H series
Part Number EID-1591SC - use with EID-1591S series
Part Number EID-1591TC - use with EID-1591T series
Part Number EID-1591UC - use with EID-1591U series
Part Number EID-1591VC - use with EID-1591V series
|
