The 1 channel 12-bits differential Analog to Digital Converter (ADC) via EID's universal serial bus (EUSB) is an educational data acquisition electronics kit. It allows you to connect your personal computer (PC) universal serial port (USB) to the kit on one side, and differential floating dc voltage source (+/- 2VDC) on the other side. Together with the our free (AS-IS) demo software, you will be able to read and log to file DC voltages. The voltages will display on the screen in millivolts. Additionally, you will be able to set the log interval and log the information to file. Our sophisticated software logging Dynamic Data Exchange (DDE) mechanism allows you to open the logged file with another program, such as spread-sheets (MS-Excel etc.), at the same time. Therefore, you will be able to easily share the file, and view it from anywhere on the web, print report or graph from your familiar existing software packages.



The 12-bits Analog to digital converter (ADC) integrated circuit (IC) component the MAX1236 (Maxim Inc, www.maxim-ic.com ), is mounted in a SMT method on the bottom side. (SMT = Surface Mounted Technology).



This ADC component has a built-in reference voltage and internal clock. The device is controlled via 2 wires, Clock, and Data (I2C protocol).

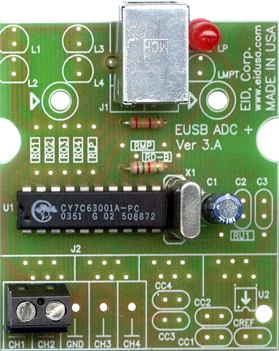

The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.






Kit mounting



This kit includes on board pre-installed free EUSB firmware!









This unique kit design provides you with the ability to wire your wires easily via front mounted terminal blocks (2  * 2pc. ). You will be able to measure 1 single-ended voltages directly from the PC.



This kit mount easily in plastic enclosure (EID-1593 series). Please note: Plastic enclosure is sold separately (for demonstration only).






Kit Software

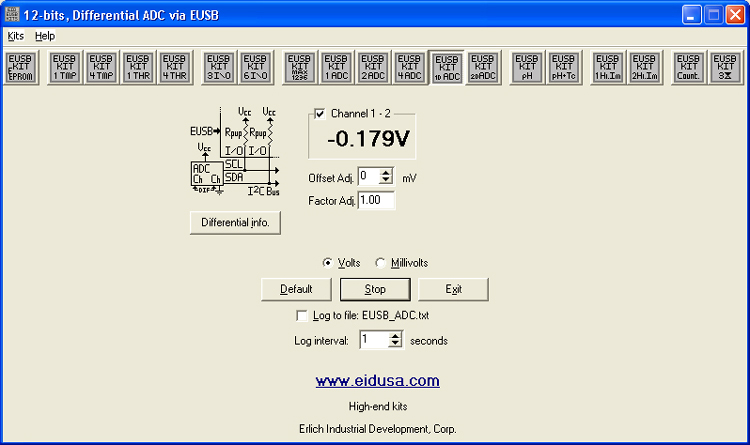

1 channel differential ADC screen shot (shown above)



Yep, Basic FREE SOFTWARE.



Simple to use. Control EUSB-kits directly from your personal computer (PC).

Our philosophy is that "NO KID or SCIENTIST WILL BE LEFT BEHIND!"



Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft Corp.)



Please be advised, the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!



All you need to do is plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can log and  read differential DC voltages.

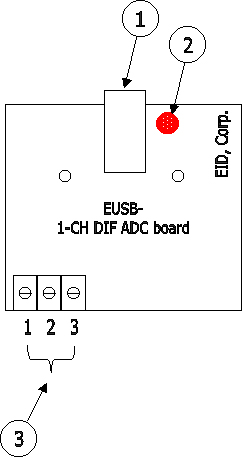

Kit Drawing









1. EUSB connector (connect your cable between the connector and your PC)

2. LED Power indicator

3. Terminal block connector

    Pin 1 = CH1

    Pin 2 = CH2

    Pin 3 = GND (extra shielding) - Option

    Input voltage = CH1 - CH2 = +/-2.00VDC






Kit Includes

  • CY7C63001          IC                  1pc.

  • MAX1236             IC                  1pc.

  • 7.5K Ohms           Resistor          1pc.

  • 2.4K Ohms           Resistor          1pc.

  • 0.1MF                 Capacitor        7pc.

  • 2P Terminal Block  Connector       1pc.

  • 3P Terminal Block  Connector       1pc.

  • 4.7MF                 Capacitor        1pc.

  • Red LED              LED                1pc.

  • USB Connector                          1pc.

  • Crystal 6MZ                              1pc.

  • PCB                                         1pc.







Description and SKU#

Price


EUSB to ADC 1 Diff.  Channel Kit

EID-K-EUSB-L1-DFADC-ASM  Fully assembled

EID-K-EUSB-L1-DFADC-PCB  PCB Only

EID-K-EUSB-L1-DFADC-KIT  Kit

EID-K-EUS-BS-LIB1S   Software (Library only)



61.00

18.60

52.75

12.00





EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
