EID's universal serial bus (EUSB)  is an educational electronics kit. It allows you to connect your personal computer (PC) universal serial port (USB) to the kit on one side and high impedance sensor or electrode on the other sided. Together with the our free (AS-IS) demo software you will be able to read and log to file high impedance electrodes voltages. Good example for such electrodes are such as pH, ORP & ISE. The electrode voltages can be display on the screen ether in millivolts or volts. Additionally you will be able to set the log interval and log the information to file. Our sophisticated software logging Dynamic Data Exchange (DDE) mechanism allows you to open the logged file with another program such as spreadsheet (MS-Excel etc.), and at the same time. Therefore, you will be able to easily share the file, and view it from anywhere on the web, print repot or graph from your familiar existing software packages.



The 12- bits Analog to digital converter (ADC) integrated circuit (IC) component the MAX1236 (Maxim Inc, www.maxim-ic.com ), is mounted in a SMT method on the bottom side. (SMT = Surface Mounted Technology).



This ADC component has a built-in reference voltage and internal clock. The device is controlled via 2 wires, Clock, and Data (I2C protocol).



The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.






Kit Software

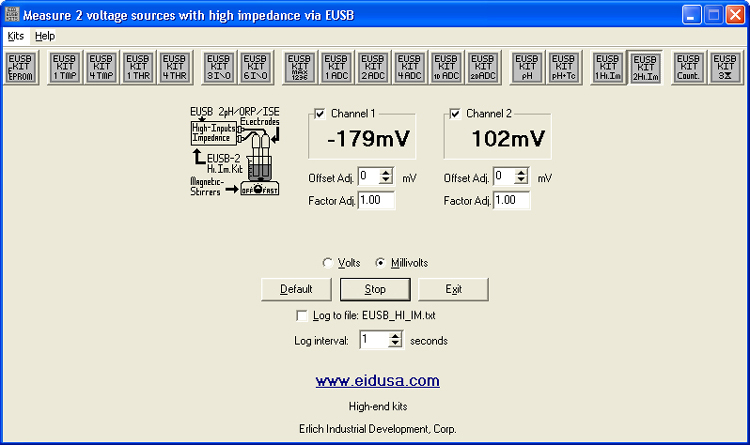

2 channels hi-impedance inputs differential ADC screen shot (shown above)



Yep, Basic FREE SOFTWARE.



Simple to use. Control EUSB-kits directly from your personal computer (PC).

Our philosophy is that "NO KID or SCIENTIST WILL BE LEFT BEHIND!"



Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft Corp.)



Please be advised, the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!



All you need to do is plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can log and  read up to two hi impedance electrodes DC voltages.
