Knockdown
Racks
(EID-REFK Series)
 |

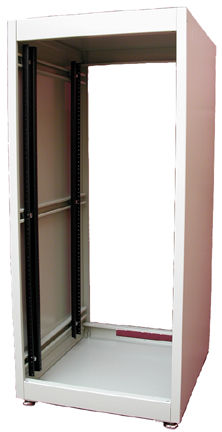

Features:
Standard
19” panel width (21.34” overall)...
Three
available depths:
-
usable
depth of 16.5" without doors, 16"
with doors (17.5" overall)
-
usable
depth of 23.5" without doors, 23"
with doors (24.5” overall)
-
usable
depth of 30.5" without doors, 30"
with doors (31.5" overall)
Knockdown
rack unit is shipped in a flat pack container for
handling ease & protection (see
below)...
Perfect
for tight access areas or 1 person installations as
unit is knocked down into 5 easy to handle parts (ie...2
sides, top, bottom and 4 panel rails)...
Complete
with; 4 infinitely adjustable - combination rack
mount rails, on E.I.A. universal spacing (5/8 - 5/8
- 1/2 inch) - drilled & tapped for 10-32 screws
(see close up below) and
4 leveling feet...
Removable
gland plate (over 10" opening) with knockouts
on rear bottom of rack for easy cable access (see
below)...
Simple
assembly using one bolt in each corner to lock the
sides to the top and bottom (hardware included)...
Heavy
duty 16 gauge steel top, bottom and sides.
Rails
are made of 10 gauge steel (zinc plated finish for
grounding capabilities)...
Recommended
maximum weight (EID-REFK1907731 tested) - 1,000
pounds...
Finished
in rugged powder paint.
|

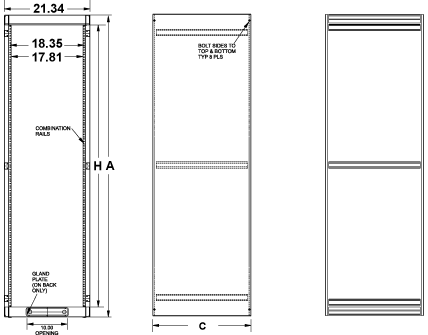

17.5" Deep models
(NOT STOCKED):
Usable Depth = 16.5" without doors, 16" with
doors
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
|
Wt.
lbs.
|
|
Inches
|
Units
|
A
|
C
|
H
|
|
EID-REFK1903517BK1
EID-REFK1903517CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
35
|
20
|
40.19
|
17.5
|
35.19
|
93
|
|
EID-REFK1904217BK1
EID-REFK1904217CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
42
|
24
|
47.19
|
17.5
|
42.19
|
100
|
|
EID-REFK1904917BK1
EID-REFK1904917CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
49
|
28
|
54.19
|
17.5
|
49.19
|
114
|
|
EID-REFK1905617BK1
EID-REFK1905617CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
56
|
32
|
61.19
|
17.5
|
56.19
|
123
|
|
EID-REFK1906317BK1
EID-REFK1906317CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
63
|
36
|
68.19
|
17.5
|
63.19
|
130
|
|
EID-REFK1907017BK1
EID-REFK1907017CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
75.19
|
17.5
|
70.19
|
144
|
|
EID-REFK1907717BK1
EID-REFK1907717CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
77
|
44
|
82.19
|
17.5
|
77.19
|
167
|
24.5" Deep models:
Usable Depth = 23.5" without doors, 23" with
doors
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
|
Wt.
lbs.
|
|
Inches
|
Units
|
A
|
C
|
H
|
|
EID-REFK1903524BK1
EID-REFK1903524CG1
EID-REFK1903524GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
35
|
20
|
40.19
|
24.5
|
35.19
|
103
|
|
EID-REFK1904224BK1
EID-REFK1904224CG1
EID-REFK1904224GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
42
|
24
|
47.19
|
24.5
|
42.19
|
111
|
|
EID-REFK1904924BK1
EID-REFK1904924CG1
EID-REFK1904924GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
49
|
28
|
54.19
|
24.5
|
49.19
|
126
|
|
EID-REFK1905624BK1
EID-REFK1905624CG1
EID-REFK1905624GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
56
|
32
|
61.19
|
24.5
|
56.19
|
136
|
|
EID-REFK1906324BK1
EID-REFK1906324CG1
EID-REFK1906324GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
63
|
36
|
68.19
|
24.5
|
63.19
|
145
|
|
EID-REFK1907024BK1
EID-REFK1907024CG1
EID-REFK1907024GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
70
|
40
|
75.19
|
24.5
|
70.19
|
160
|
|
EID-REFK1907724BK1
EID-REFK1907724CG1
EID-REFK1907724GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
77
|
44
|
82.19
|
24.5
|
77.19
|
185
|
31.5" Deep models
(NOT STOCKED):
Usable Depth = 30.5" without doors, 30" with doors
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
|
Wt.
lbs.
|
|
Inches
|
Units
|
A
|
C
|
H
|
|
EID-REFK1903531BK1
EID-REFK1903531CG1
EID-REFK1903531GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
35
|
20
|
40.19
|
31.5
|
35.19
|
115
|
|
EID-REFK1904231BK1
EID-REFK1904231CG1
EID-REFK1904231GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
42
|
24
|
47.19
|
31.5
|
42.19
|
125
|
|
EID-REFK1904931BK1
EID-REFK1904931CG1
EID-REFK1904931GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
49
|
28
|
54.19
|
31.5
|
49.19
|
140
|
|
EID-REFK1905631BK1
EID-REFK1905631CG1
EID-REFK1905631GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
56
|
32
|
61.19
|
31.5
|
56.19
|
150
|
|
EID-REFK1906331BK1
EID-REFK1906331CG1
EID-REFK1906331GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
63
|
36
|
68.19
|
31.5
|
63.19
|
160
|
|
EID-REFK1907031BK1
EID-REFK1907031CG1
EID-REFK1907031GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
70
|
40
|
75.19
|
31.5
|
70.19
|
176
|
|
EID-REFK1907731BK1
EID-REFK1907731CG1
EID-REFK1907731GY2
|
|
Black
Gray/Beige
ASA61/Gray
|
Textured
Textured
Smooth
|
77
|
44
|
82.19
|
31.5
|
77.19
|
205
|
Features (with photos):
|
Infinitely
Adjustable (front to back)
10-32 Tapped, Zinc Plated,
10-gauge Steel, Panel Rails
(Rack ships with 2 pair included,
shown here mounted to Amhal Strut)
|
Gland
Plate Opening For Easy Wiring Access
(Bottom,
rear of rack)
|

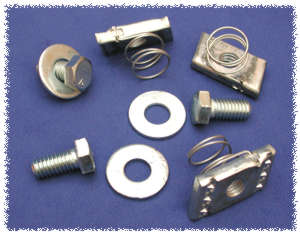

Additional
Hardware Used to Mount Panel Rail To Amhal Strut
|
|
Part
Number EID-1463S
(package of 3)
-
3/8
x 16 spring loaded nuts (for "C"
channels)
-
0.75"
hex head bolts & washers
-
Included
with above rails
|
|
Interlocking
Sides
To both the top & bottom (shown)
|
Over
Sized (1.67" Diameter) Nylon Based - Leveling
Feet Included
|
|
|

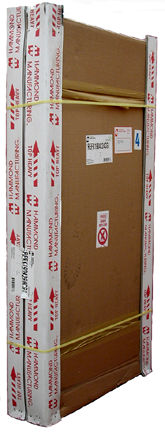

Shipped
in a flat pack container for handling ease &
protection...
Perfect
for tight access areas or 1 person
installations...
Rack
is knocked down into 5 easy to handle parts (ie...two
sides, top, bottom and a pack of 4 panel rails)...
|
Accessories:
|
|
Casters
- Part Number EID-1425P
-
SOLD
IN A SET OF 4
-
Light
Duty
-
NOTE:
For EID-EID-REFK - knockdown racks ONLY
-
400#
Mfg's specified weight capacity (Set of 4)
-
Twin
nylon swivel wheels with zinc axles and hoods
-
5/16
- 18 threaded stem mounts into existing holes in
base of EID-REFK (knockdown) rack (in place of
leveling feet)
-
Wheels
are black & 2.37" wheel diameter
-
Final
mounting height of 2.75"
|
|
|
Casters
- Part Number EID-1425PHD
-
SOLD
IN A SET OF 4
-
Medium
Duty
-
NOTE:
For EID-REFK - knockdown racks ONLY
-
600#
Mfg's specified weight capacity (Set of 4)
-
Features
ball bearing swivel and hard composition wheels
-
Small
foot print 2.125" x 15/16" hole mounting
pattern
-
Wheels
are grey & 2" wheel diameter
-
Includes
mounting hardware
|
-
Doors
-
Extra
Panel Rails - 2 Pair
INCLUDED with rack
-
Aluminum
rack panels
-
Steel
rack panels
-
Formed
steel rack panels
-
Ventilated
& Access Panels
-
Doors
& Chassis - Panel Mount
-
Cable
Organizing
-
Shelves
- Panel Mount
-
Shelves
& Slides - Dual Vertical Rail Mount
-
Keyboard
Shelves & Drawers
-
