OEM CONVERTER – 420VX-24X-DUAL - Dual current to voltage converter (transducer) board with DIN-RAIL mounting option.



The CONVERTER-420VX-24X-DUAL board is designed to perform industrial standard precision current to voltage linear conversion (transducer). If used properly, it will eliminate the need for an expensive boards, which would otherwise be needed to carry out the same tasks.



The CONVERTER-420VX-24X-DUAL  is easy to install, setup and operate. If you want to do professional remote linear current measurement related functions, The CONVERTER-420VX-24X-DUAL offers the features you need. It can be mounted easily via four 0.125" mounting holes utilizing 4-40 screws.



Simply connect the board to 24V AC or DC Power supply, connect your two current sources (4-20mA) to the differential inputs and our board will convert it to two linear voltages (see tables for different output ranges).



The dual channel current to voltage transducer module CONVERTER-420VX-24X-DUAL, converts and conditions two 4-20mA signals to two DC voltage.



The CONVERTER-420VX-24X-DUAL transducer is typically used to convert currents 4-20mA to a stable constant-voltage source. A precision instrumentation amplifier and filter combination provide an accurate, conditioned 0 to 5V or 0 to 10V DC output from a 4-20mA current input.



Other input current are available:



1 to 5mA, 10 to 50mA and 20 to 100mA

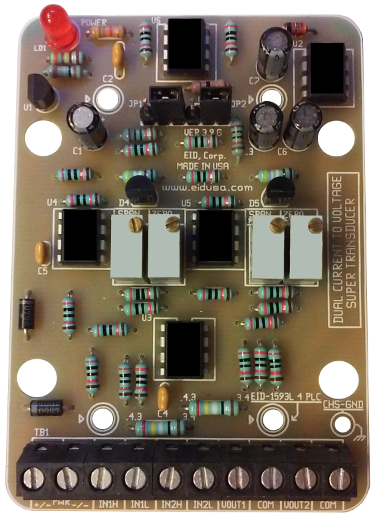

CONVERTER – 420VX-24X-DUAL, precision Current-to-Voltage transducer board is an accurate, linear, and an efficient way to convert two current standards 4 to 20mA, 0 to 20mA signals to industrial standards voltages. Shown above Model A, the two output set to 0V to 10V (Hint, Jumpers B & D are install).




One or Two 4-20mA inputs Split/Convert to Two Outputs. Where; each channel individually has both, ZERO AND SPAN linear adjustment:











Precision Current-to-Voltage Converter/Transmitter



Precise calibration with simple SPAN and ZERO adjustments:



1. Power 24V or 28V DC or  AC

2. Input 1

    Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-100mA)

3. Input 2

    Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-100mA)

4. Voltage Output 1

    Note: Available in many output voltage configuration ranges (See below tables)

5. Voltage Output 2

    Note: Available in many output voltage configuration ranges (See below tables)

6. Per Channel Span and Zero calibration via multi-turn trimmer adjustment.

7. JP1 Per Channel output setting. Channel 1 A/B and channel 2 C/D

8. LED Power Indicator

9. Chassis ground wire connection (optional)



Outputs configurations:

Model A:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 5

A

4 to 20

0 to 10

B



Model B:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -5

A

4 to 20

0 to -2.5

B



Model C:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 1

A

4 to 20

0 to 2

B



Model D:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -1

A

4 to 20

0 to -2

B



Model E:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 3

A

4 to 20

0 to 3.3

B



Model F:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -3

A

4 to 20

0 to -3.3

B



Model G:



Input (mA)

Output (VDC)

JP1

4 to 20

-2.5 to 2.5

A

4 to 20

-5 to 5

B



Model H:



Input (mA)

Output (VDC)

JP1

4 to 20

2.5 to -2.5

A

4 to 20

5 to -5

B



Model I:



Input (mA)

Output (VDC)

JP1

4 to 20

-0.5 to 0.5

A

4 to 20

-1 to 1

B



Model J:



Input (mA)

Output (VDC)

JP1

4 to 20

0.5 to -0.5

A

4 to 20

-1 to 1

B



Model X:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 4.6

A

4 to 20

0 to 6.4

B




Mounting Option





Board, shown above mounted in plastic enclosure (EID-1593 series enclosure) with Din-Rail-clip (optional).



Note:



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).






CONVERTER-420VX-24X Features



  • Dual voltage outputs

  • Dual Output Zero calibration via multi-turn trimmer adjustment.

  • Dual Output Span calibration via multi-turn trimmer adjustment.

  • Power via 24V or 28V DC pr AC

  • Converts two 4-20mA analog current to two output voltages

  • Can be customized to accommodate your output voltages requirement.

  • Industrial Standard inputs of 4-20mA makes the CONVERTER ideal for remote sensing applications.

  • Linear voltage output.

Specifications

  • Input currents                            4-20 mA  (optional 1-5 mA, 10-50 mA and 20-100 mA)

  • Input Impedance                       250 Ohms

  • Dual Output voltage Model A              0 to 5V, 0 to 10V

  • Dual Output voltage Model B              0 to -5V, 0 to -2.5V

  • Dual Output voltage Model C              0 to 1V, 0 to 2V

  • Dual Output voltage Model D              0 to -1V, 0 to -2V

  • Dual Output voltage Model E              0 to 3V, 0 to 3.3V

  • Dual Output voltage Model F              0 to -3V, 0 to 3.3V

  • Dual Output voltage Model G              -2.5 to 2.5V, -5 to 5V

  • Dual Output voltage Model H              2.5 to -2.5V, 5 to -5V

  • Dual Output voltage Model I              -0.5 to 0.5V, -1 to 1V

  • Dual Output voltage Model J              0.5 to -0.5V, 1 to -1V

  • Dual Output voltage Model X              0 to 4.6V, 0 to 6.4V

  • PCB material                             FR4

  • Freq. Response                          L.F. 2KHz

  • Max power consumption              0.25W

  • Storage temperature                  Between 40 to 70 [F]

  • Operating temperature                -5 to 125 [F] (-20 to 52°C) @ 95% RH

  • Low board DC voltage                 24VDC

  • Power source                            24V @ 20mA, filtered

  • Adjustment                               Via trimmers Zero and Span

  • Mounting                                  Four 0.125” (3.1mm) holes with center distance of 1.1"

  • Board dimensions                       2.4" * 3.4"

  • Manufactured                           100% in USA

Pricing



* The OEM products described herein, Prices, SKU#, P# are subject to change at any time without notice, including but not limited to products features, specifications, and designs.

Description

SKU #

Price

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to 5 or 0 to 10V transducer. with terminal-block (6 positions). Model A

EID-CONVER-TER-D420VX-24XA

$275.94

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to -5 or 0 to -2.5V transducer. with terminal-block (6 positions). Model B

EID-CONVER-TER-D420VX-24XB

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to 1 or 0 to 2V transducer. with terminal-block (6 positions). Model C

EID-CONVER-TER-D420VX-24XC

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to -1 or 0 to -2V transducer. with terminal-block (6 positions). Model D

EID-CONVER-TER-D420VX-24XD

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to 3 or 0 to 3.3V transducer. with terminal-block (6 positions). Model E

EID-CONVER-TER-D420VX-24XE

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to -3 or 0 to -3.3V transducer. with terminal-block (6 positions). Model F

EID-CONVER-TER-D420VX-24XF

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage -2.5 to 2.5 or -5 to 5V transducer. with terminal-block (6 positions).    Model G

EID-CONVER-TER-D420VX-24XG

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 2.5 to -2.5 or 5 to -5V transducer. with terminal-block (6 positions).    Model H

EID-CONVER-TER-D420VX-24XH

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage -0.5 to 0.5 or -1 to 1V transducer. with terminal-block (6 positions).    Model I

EID-CONVER-TER-D420VX-24XI

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0.5 to -0.5 or 1 to -1V transducer. with terminal-block (6 positions).    Model J

EID-CONVER-TER-D420VX-24XJ

$287.13

CONVERTER-D420VX-24X dual current (4-20mA) to voltage 0 to 4.6 or 0 to 6.39V transducer. with terminal-block (6 positions). Model X

EID-CONVER-TER-D420VX-24XX

$287.13

Modified ABS Plastic Instrument enclosures option

EID-1593LBK

$12.97

Modified Translucent blue ABS Plastic enclosures option

EID-1593LTBU

$14.85

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.242

  •
