OEM MODULE –FREQUENCY (PULSE RATE) DIVIDER - A voltage signal pulse rate divider industrial transducer Board.
This board offers a simple, state-of-the-art, reliable way to convert Hi speed pulse rate input voltage signal to a low level pulse rate signal. i.e. 1 KHZ (1mSec) signal into 125 Hz signal.
The MODULE FREQUENCY DIVIDER FDX, Frequency divider with output voltage (X) select converter, is a signal continuant pulses to a lower rate ("speed") continuant pulses signal.
The FREQUENCY DIVIDER MODULE, board is designed to perform frequency to lower frequency value conversion. If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.
The MODULE FREQUENCY DIVIDER FDX is easy to install, setup, and operate. If you want to do professional scientific frequency measurement related functions such as flow rate accumulation measurements, The FREQUENCY DIVIDER FDX offers the features you need. It can be mounted easily via two 0.125" mounting holes using 4-40 screws.
Simply connect the board input to incoming pulse signals source from open collector isolated opto coupler or pulses from dry contact i.e. 256 pulses per second and our board will convert it to an lower rate output 1 pulse per second; equal to input signal divided by a factor X (x=256). |
Shown above pulse rate divided by 2 (Jumper JP1 configure to /2) Ideal for PLC, Electric KWH meter, Flow meter, pulses accumulator readings.
|
|
|
Utilizing in energy management applications, where interfacing fast pulses rate or frequency output such as flow, kWh and BTU energy metering devices or transducers. The board interfaces fast changing pulse rate with a standard PLC and DDC inputs.
The Frequency / Pulse Divider (FDX) transducer board accepts pulse signals from devices such as flow sensors, electric KWh meters etc., rescales and divides these pulses, and provides a level pulse output. This allows the receiving devices such “pulse-accumulator,” PLC or Flow Rate display to monitor higher frequencies than they are able accept directly.
While enhancing the input pulses, the Frequency/Pulse Divider (FDX) transducer board (module) utilized as “Binary” Encoder Divider Module (BEDM) to reduce the number of pulses per encoder revolution. In addition to cover a wide application range, the board output signal 2 can be set for four signal levels; 3V for ARM Processors, 5V TTL System and 10V PLC or 15V CMOS based equipments. Where the board output signal 1 is an open collector that can be use with system derived by opto-isolated inputs.
|
||
|
|
||
|
Super precision Fervency-Divider Transducer/Converter/Transmitter

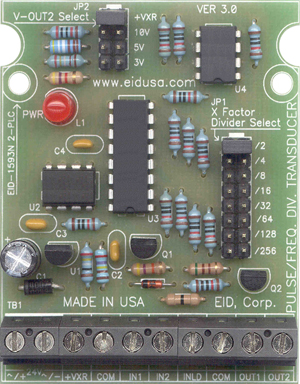

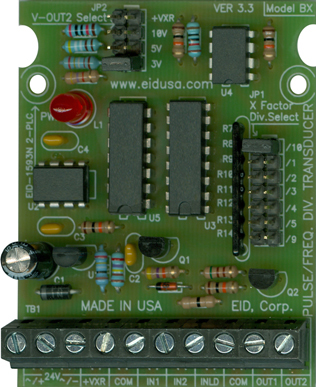

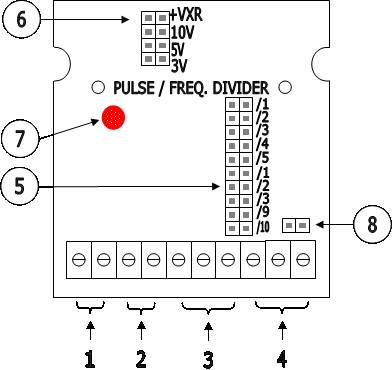

1. Power 24V AC or DC 2. +VXR Auxiliary voltage to drive external flow sensor, KWh meters. 3. Input Frequency pulses: IN1 Dry contact, IN2 & INL (load) isolation opto-coupler. 4. Outputs: COM, OUT1 (open collector) and OUT2 (3V, 5V, 10V or +VXR level signals) 5. Configurable (jumper select) binary pulse rate divider factor X. Where; X= 2, 4, 8, 16, 32, 64, 128 or 256 6. Output 2 (OUT2) signal level select LX. Where LX= 3V, 5V, 10V or +VXR. 7. LED Power indicator

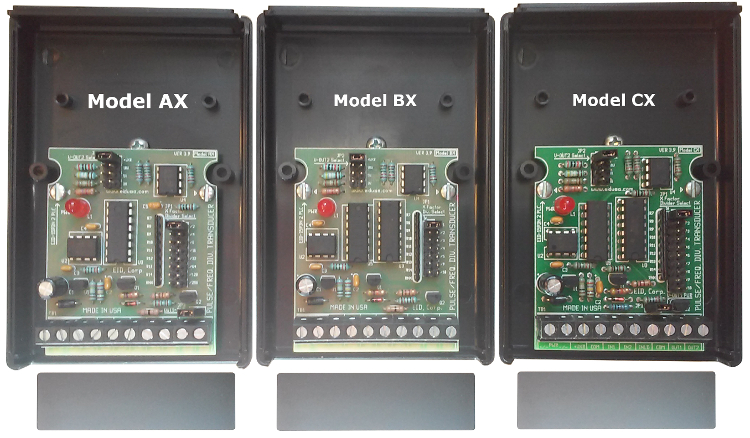

Mounting Option

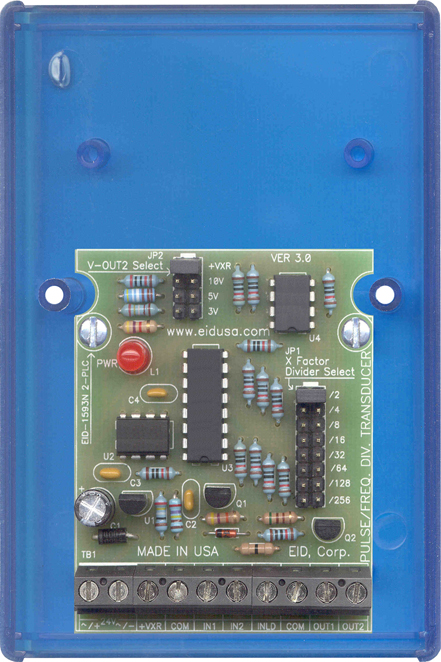

Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications
EID-1593NTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side (left) and inside mounting view (right).
Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).
|
||
|
Pricing
* Prices, SKU#, P# and colors are subject to change without notice. |
||
|
Description |
SKU # |
Price |
|---|---|---|
|
FREQUENCY-DIVIDER-FDX MODULE A1 pulse rate divider with terminal-block (10 positions), Division factor 10 |
EID-CONVER-TER-FD-X15-A1-10TB |
$168.33 |
|
Modified Translucent blue ABS Plastic Instrument enclosures option |
EID-1593NTBU |
$12.93 |
|
Modified Black ABS Plastic Instrument enclosures option |
EID-1593NBK |
$10.74 |
|
Din rail mounting mounting kit option |
EID-1427DINCLIP |
$4.24 |
|
|
||
