SENSER-W27. High accuracy resistance type liquid level sensors board.



The SENSER-W27 board designed to perform high accuracy liquid level to resistance conversion. If used properly, it will eliminate the need for expensive liquid level sensors, which would otherwise be needed to carry out the same tasks.



SENSER-W27 is easy to install, setup and operate. If you want to do professional liquid level measurement related functions, SENSER-W27 offers the features you need. Mounted easily via 0.125" mounting holes.



The board design to powered via low frequency low voltage, low current source. Ideally current alternating of 1V at 1KHZ.



The SENSER-W27 is a two terminal integrated board (IB) liquid level sensors. The SENSER-W27 series are made of complex deposit epoxy base and high temperature and pressure formulated tin over cupper technology. This made them superior due to unified surface.



Very short response time, low hysteresis, high repeatable ,interchangeable, as well as low price make it a winner; among HAVC controller, data loggers,  and  automotive manufactures and consumer products and appliance. It used as a building board for many liquid control environments.



The board will convert liquid level with tight tolerances of 0.125" to 2.5", to equivalent resistance value.





SENSER-W27

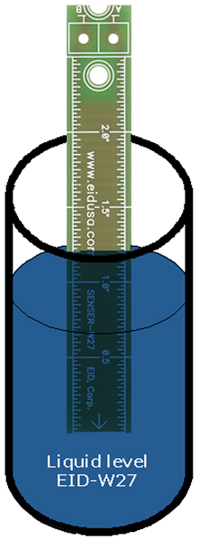

SENSER-W27 Application (shown above)



SENSER-W27 Features



  • Fine small flat surface mounted anywhere.

  • Accuracy of 0.093%

  • fast response time

  • High repeatable.

  • Interchangeable. No need for new calibration.

  • very low hysteresis

  • Feature EID's tin on cupper high pressure high temperature technology.

Specifications

  • PCB material                            FR4 composite

  • Output resistance                    0.01 Ohms to 250 M-Ohms

  • Max power consumption            0.01W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 97% RH

  • AC voltage drive                      Current alternating at 1 to 9 [V] AC. Ideally 1VAC

  • Frequency drive                       Current alternating at 50HZ to 10KHz Ideally 1KHZ

  • Liquid level range                     Up to 2.5" varies with configuration and liquid solutions

  • Accuracy                                0.093%

  • Manufactured                         100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

SENSER-W27 High accuracy 2.5" liquid level sensor

EID-SENSER-W27

$15.54

SENSER-W27 High accuracy 2.5" liquid level sensor With Terminal block configuration

EID-SENSER-W27B

$16.54

Pre soldered wires (per 1') option

EID-SENSER-W27W

1.94

  •
