OEM REVERSE/INVERTER AMPLIFIER (TRANSDUCER)–VRV-ZBSA - voltage (V) to Reverse voltage (RV) industrial / scientific supper (S) transducer (converter) transmitter. With Zero and Span and Bias adjustments.



This board offers effective, state-of-the-art, reliable linear control of Analog DC voltage signals (both, positive and negative voltages) sensors and scientific equipment. Commonly utilized as the heart of Reverse Single converter, particularly in  Scientific In-Line Amplifier.



The TRANSDUCER-DVVS-ZSE voltage to reverse voltage converter is a signal reverse voltages to voltage supper transducer board for sensors, HVAC (Heating, Ventilation and Air Conditioning), electro-hydraulic and servo electronics; actuator, dampers, bleed pilot valve, globe valves, butterfly valves, plug valves, dampers and more.



The TRANSDUCER-DVVS-ZSE board is designed to perform voltage to reverse voltage conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.





The Board show above configure for 0 to 5V DC input signal to 5V to 0V reverse output signal

The TRANSDUCER-DVVS-ZSE  is easy to install, setup, and operate. If you want to do professional remote scientific voltage measurement related functions, The board offers the features you need. It can be mounted easily via six 0.125" mounting holes using 4-40 screws.



Simply connect the board to +/-15V DC connect your voltage source signal (+/- VX) i.e. -10 to 10V DC to the input and our board will reverse it (-/+ VY) i.e. 10 to -10V DC or



See below table "voltage to reverse voltage" industrial standard configuration models".





Precision Voltage to Reverse-Voltage Scientific Amplifier



1. Input Signal (voltage)

2. Power (+/-15V DC)

3. Output reverse signal (reverse voltage).

4. Output multi-turn trimmer Zero adjustment.

5. Output multi-turn trimmer Bias adjustment.

6. Output multi-turn trimmer Span adjustment.





Voltage to Voltage industrial standard configuration models:



Model #

Input Voltage

Output Reverse Voltages

EID's OEM P#

VRV-2X5A

0V to 2.5V

2.5V to 0V

EID-CONVER-TER-VRV-2X5A-7TB








VRV-5X0A

0V to 5V

5V to 0V

EID-CONVER-TER-VRV-5X0A-7TB








VRV-10X0A

0V to 10V

10V to 0V

EID-CONVER-TER-VRV-10X0A-7TB


VRV-12XA

0V to 12V

12V to 0V

EID-CONVER-TER-VRV-12X0A-7TB


VRV-N2X5A

0V to -2.5

-2.5V to 0V

EID-CONVER-TER-VRV-N2X5A-7TB








VRV-N5X0A

0V to -5V

-5V to 0V

EID-CONVER-TER-VRV-N5X0A-7TB








VRV-N10X0A

0V to -10V

-10V to 0V

EID-CONVER-TER-VRV-N10X0A-7TB


VRV-P5N5A

5V to -5V

-5V to 5V

EID-CONVER-TER-VRV-P5N5A-7TB


VRV-P10N10A

10V to -10V

-10V to 10V

EID-CONVER-TER-VRV-P10N10A-7TB



Mounting Option



Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications

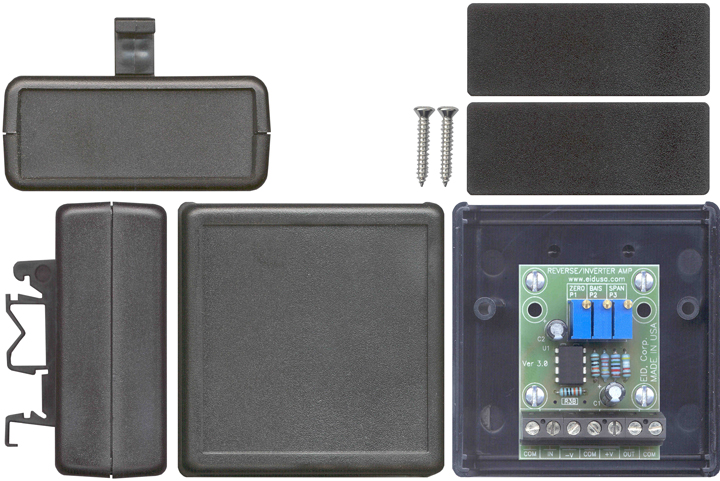

The voltage to voltage board shown above mounted in EID-1593LTBU translucent blue ABS plastic instrument enclosure with Din-Rail mounting options





The voltage to voltage board shown above mounted in EID-1593LTBU translucent blue ABS plastic instrument enclosure with Din-Rail mounting options





Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).



Board Powering--



Below are some power supply example for generating -/+ 15VDC required to power the frequency to voltage transducer.



1. One can use our POWER-AC3PNDC-15LD a Low Current Dual Output 15 & -15 Voltage DC power supply board/Regulator Interface board with step-down power transformer (110V/60HZ primary).





2. One can use our POWER-AC3PNDC-15C a Low Current Dual Output 15 & -15 Voltage DC power supply board/Regulator Interface board power of Center Tap (CT) 24VAC CT-transformer.



3. One can use our POWER-AC2PNDC-15A a Low Current Dual Output 15 & -15 Voltage DC power supply board/Regulator Interface board power of 24VAC transformer.



Note: For powering more then 2 transducer use POWER-PSD15 or Adjustable Dual Output Positive & Negative Voltage Power-Supply set to output voltage of +/-15VDC.





Specifications

  • Max power consumption              0.5W

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Power source                            +/-15VDC filtered

  • Zero Adjustment                        Via trimmer (option)

  • Bias Adjustment                         Via trimmer (option)

  • Span Adjustment                        Via trimmer (option)

  • Mounting                                  Four 0.125” (3.1mm) holes with centers distance of 1.1" & 1.1"

  • Board dimensions                       1.875" & 1.425" (47.6mm * 36.2mm)

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to 2.5V) to reverse voltage (2.5V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-2X5A-7TB

$33.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to 5V) to reverse voltage (5V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-5X0A-7TB

$29.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to 10V) to reverse voltage (10V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-10X0A-7TB

$29.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to 12V) to reverse voltage (12V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-12X0A-7TB

$33.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to -2.5V) to reverse voltage (-2.5V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-N2X5A-7TB

$36.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to -5V) to reverse voltage (-5V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-N5X0A-7TB

$36.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (0V to -10V) to reverse voltage (-10V to 0V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-N10X0A-7TB

$36.99

REVERSE (INVERTER) SIGNAL AMP Model A voltage (5V to -5V) to reverse voltage (-5V to 5V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-P5N5A-7TB

$39.39

REVERSE (INVERTER) SIGNAL AMP Model A voltage (10V to -10V) to reverse voltage (-10V to 10V) amplifier supper scientific transducer (converter) with terminal-block (7 positions).

EID-CONVER-TER-VRV-P10N10A-7TB

$39.39

Modified Translucent blue ABS Plastic Instrument enclosures option

EID-1593KTBU

$9.75

Modified black ABS Plastic Instrument enclosures option

EID-1593LBK

$7.77

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

  •
