ISOLATER-HL1/2/3/4 Multi-channel signal isolation board, with dual input options. High or Low signal voltage input isolation.



The ISOLATOR-HL1/2/3/4 board is designed to perform input to output signal isolation task.



If used properly, it will eliminate the need for expensive filters and isolators which would otherwise be needed to carry out the same tasks. This board is ideally for driving relay, solenoid, damper and actuator.



ISOLATOR-HL1/2/3/4 is easy to install, setup and operate. If you want to do professional AC (Include high voltage signals) or low DC voltage isolate on/off related functions, the ISOLATOR-HL1/2/3/4 offers the features you need.



Mounted easily via 0.125" mounting holes using 4-40 screws (optional) and wire via convenient conventional industrial standards cage up terminal blocks (TB).



Each individual channel on the board designed to isolate via industrial standard TTL signals or on the high input option up to 240V.



Output for each isolated channel includes pull-up resistor.



Conveniently, all wires to the board down via Terminal Blocks.



ISOLATOR-HLX, Where; X = 1, 2, 3 or 4 isolated channels



Options



You can purchase the ISOLATOR-HLX with different input signal AC and DC i.e. 5V, 9V, 10V 12V, 110V, 150V, 220V, 260V....





1 Ch. isolation board





2 Ch. isolation board

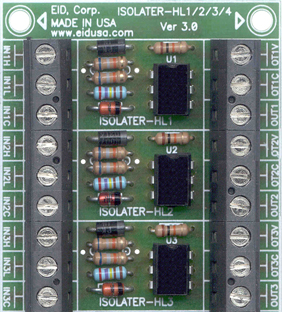

3 Ch. isolation board

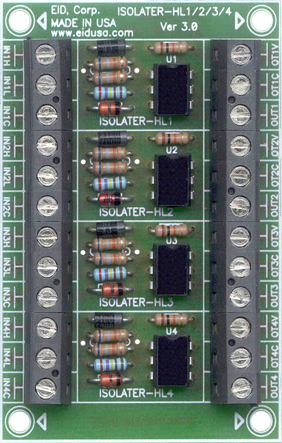

4 Ch. isolation board

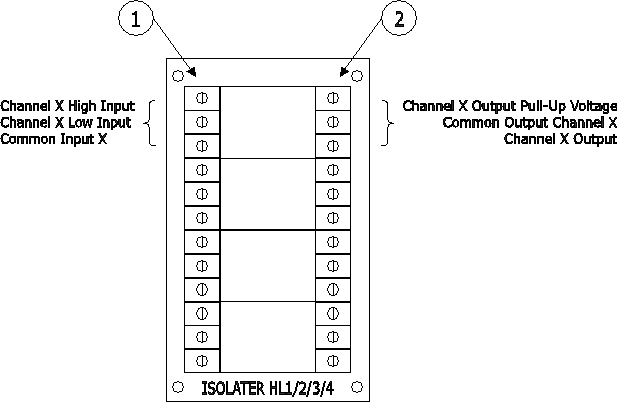

Figure A. shown above with maximum 8 Channels configuration and options



1. Four Groups of two channels Inputs: Input X (up) Input Y (down) Input X & Y common (center).

2. Four Groups of two channels Outputs: Output X (up), Output Y (down), output X & Y common (center).

3. Four Groups of two channels Power indicator LED: Channel X (up), Channel Y (down).



Where;

           X = Channels 1, 3, 5 & 7

         Y = Channels 2, 4, 6 & 8






ISOLATOR-HLX Features



  • Signal input to output isolation.

  • High or Low input signal isolation to open collector output with pull-up output resistor.

Specifications

  • PCB material                            FR4

  • Output Voltage                        Ref. to ground voltage

  • Max power consumption            0.1W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               24 [V]

  • Input resistance                      >4 [K Ohms]

  • Isolation                                 > 4 [KV]

  • Manufactured                         100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

ISOLATER-L1 1 channel signal isolation board TTL/CMOS Input signals

EID-INTERF-ACER-01SI-LX5

$45.89

ISOLATER-L2 2 channels signal isolation board TTL/CMOS Input signals

EID-INTERF-ACER-02SI-LX5

$52.89

ISOLATER-L3 3 channels signal isolation board TTL/CMOS Input signals

EID-INTERF-ACER-03SI-LX54

$96.89

ISOLATER-L4 4 channels signal isolation board TTL/CMOS Input signals

EID-INTERF-ACER-04SI-LX5

$127.89

ISOLATER-H1 1 channel signal isolation board 150V AC Input signals

EID-INTERF-ACER-01SI-H150

$54.72

ISOLATER-H2 2 channels signal isolation board 150V AC Input signals

EID-INTERF-ACER-02SI-H150

$72.93

ISOLATER-H3 3 channels signal isolation board 150V AC Input signals

EID-INTERF-ACER-03SI-H150

$105.99

ISOLATER-H4 4 channels signal isolation board 150V AC Input signals

EID-INTERF-ACER-04SI-H150

$135.99

  •
