OEM TRANSDUCER–DVVS-ZSE - Differential (D) voltage (V) to voltage (V) industrial / scientific supper (S) transducer (converter) transmitter. With Zero and Span adjustments and differential input.



This board offers effective, state-of-the-art, reliable linear control of Bipolar voltage (both, positive and negative voltages) sensors and scientific equipment. Commonly utilized as the heart of Bipolar to Single-polar (single ended)signals converter, particularly in  Scientific In-Line Amplifier.



The TRANSDUCER-DVVS-ZSE voltage to voltage converter is a signal control (Proportional or Differential) voltages to voltage supper transducer board for sensors, HVAC (Heating, Ventilation and Air Conditioning), electro-hydraulic and servo electronics; actuator, dampers, bleed pilot valve, globe valves, butterfly valves, plug valves, dampers and more.



The TRANSDUCER-DVVS-ZSE board is designed to perform voltage to voltage conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



The TRANSDUCER-DVVS-ZSE  is easy to install, setup, and operate. If you want to do professional remote scientific voltage measurement related functions, The TRANSDUCER-DVVS-ZSE offers the features you need. It can be mounted easily via four 0.125" mounting holes using 4-40 screws.







Simply connect the board to 24VDC or 24VAC connect your voltage source Bipolar signal (+/- VX) i.e. -10 to 10V DC to the differential input and our board will convert it single ended Uni-polar signal (VY) i.e. 0 to 10V DC or

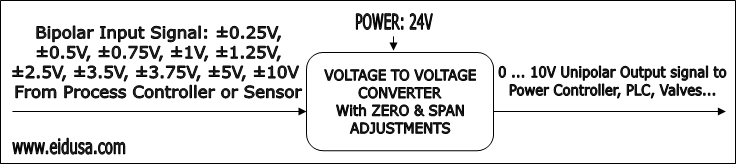

The TRANSDUCER – DVVS-ZSE transducer board is an accurate, linear, and an efficient way to convert industrial standards voltage (differential input DC voltage models) -10V to 10V, -5V to 5V, -3.75V to 3.75V, -3.5V to 3.5V, -2.5V to 2.5V, -1.25V to 1.25V, -1V to 1 V, -0.75V to 0.75, -0.5V to 0.5V, -0.25V to 0.25V  into industrial standards outputs signals 0 to 10V, 0 to 5V, o to 4.096V, 0 to 3.75V, 0 to 3.5V, 0 to 3.3V, 0 to 3V, 0 to 2.5V, 0 to 2V, 0 to 1V, 0 to 0.5V.... See below table "voltage to voltage" industrial standard configuration models".





Voltage to Voltage Converter/Transducer




Basic configurations/modules with 0-10V outputs:



Bipolar ±0.25V to Unipolar 0 to 10V Converter



Bipolar ±0.5V to Unipolar 0 to 10V Converter



Bipolar ±0.75V to Unipolar 0 to 10V Converter



Bipolar ±1V to Unipolar 0 to 10V Converter



Bipolar ±1.25V to Unipolar 0 to 10V Converter



Bipolar ±2.5V to Unipolar 0 to 10V Converter



Bipolar ±3.5V to Unipolar 0 to 10V Converter



Bipolar ±3.75V to Unipolar 0 to 10V Converter



Bipolar ±5V to Unipolar 0 to 10V Converter



Bipolar ±10V to Unipolar 0 to 10V Converter








Precision Voltage-to-Voltage Scientific Transducer/Transmitter

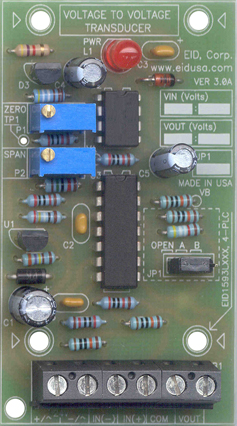

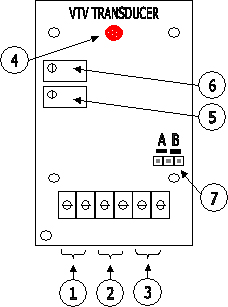

1. Power 24V DC or  AC

2. Differential Input voltage.

    Note: Available in many input voltage configuration ranges (+/-0.25V, +/-0.5V, ... +/-1V, +/-5V, +/-10V...).

3. Output voltage.

    Note: Available in many output voltage configuration ranges (0 to 10V, 0 to 5V, 0 to 3.3V...).

4. LED power indicator.

5. Output multi-turn trimmer Span adjustment.

6. Output multi-turn trimmer Zero adjustment.

7. Output select: Open, A or B (see table).






Voltage to Voltage industrial standard configuration models:



Model #

Input Voltage

Output Voltages (Open, A or B)

EID's OEM P#

DVVS-0X25A

-0.25V to 0.25V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-0X25A-6TB









DVVS-0X5A

-0.5V to 0.5V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-0X5A-6TB









DVVS-0X5B

-0.5V to 0.5V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-0X5B-6TB









DVVS-0X5C

-0.5V to 0.5V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-0X5C-6TB



DVVS-0X5D

-0.5V to 0.5V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-0X5D-6TB



DVVS-0X75A

-0.75V to 0.75V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-0X75A-6TB









DVVS-0X75B

-0.75V to 0.75V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-0X75B-6TB









DVVS-0X75C

-0.75V to 0.75V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-0X75C-6TB



DVVS-0X75D

-0.75V to 0.75V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-0X75D-6TB



DVVS-1A

-1V to 1V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-1A-6TB









DVVS-1B

-1V to 1V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-1B-6TB









DVVS-1C

-1V to 1V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-1C-6TB



DVVS-1D

-1V to 1V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-1D-6TB



DVVS-1X25A

-1.25V to 1.25V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-1X25A-6TB









DVVS-1X25B

-1.25V to 1.25V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-1X25B-6TB









DVVS-1X25C

-1.25V to 1.25V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-1X25C-6TB



DVVS-1X25D

-1.25V to 1.25V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-1X25D-6TB



DVVS-2X5A

-2.5V to 2.5V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-2X5A-6TB









DVVS-2X5B

-2.5V to 2.5V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-2X5B-6TB









DVVS-2X5C

-2.5V to 2.5V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-2X5C-6TB



DVVS-2X5D

-2.5V to 2.5V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-2X5D-6TB



DVVS-3X5E

-3.5V to 3.5V

0 to 10V or 0 to 5V or 0 to 3.5V

EID-CONVER-TER-DVVS-3X5D-6TB



DVVS-3X75F

-3.75V to 3.75V

0 to 10V or 0 to 5V or 0 to 3.75V

EID-CONVER-TER-DVVS-3X75D-6TB



DVVS-5A

-5V to 5V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-5A-6TB









DVVS-5B

-5V to 5V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-5B-6TB









DVVS-5C

-5V to 5V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-5C-6TB



DVVS-55D

-5V to 5V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-5D-6TB



DVVS-10A

-10V to 10V

0 to 10V or 0 to 5V or 0 to 3.3V

EID-CONVER-TER-DVVS-10A-6TB









DVVS-10B

-10V to 10V

0 to 2V or 0 to 1V or 0 to 0.5V

EID-CONVER-TER-DVVS-10B-6TB









DVVS-10C

-10V to 10V

0 to 5V or 0 to 2.5V or 0 to 1V

EID-CONVER-TER-DVVS-10C-6TB



DVVS-10D

-10V to 10V

0 to 10V or 0 to 5V or 0 to 4.096V

EID-CONVER-TER-DVVS-10D-6TB




Mounting Option



Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications





EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side view





The voltage to voltage board shown above mounted in EID-1593LTBU translucent blue ABS plastic instrument enclosure with Din-Rail mounting options



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).




TRANSDUCER-DVVS-ZSE Features



  • Built-in power LED indicator.

  • +/- 10V input 0 to 10V output multi-turn trimmer both Zero and Span adjustments.

  • Power via 24V DC or AC industrial standard.

  • Converts Bipolar voltages VDC to an analog single ended Voltages 0-10V

  • Can be customized to accommodate your input and output voltage requirement.

  • Linear current output.

  • Deferential input.

  • Voltage output rated up to 18V.

  • On board trimmer facilitates precise Zero calibration of output voltage

  • On board trimmer facilitates precise Span calibration of output voltage

Specifications

  • Input voltage                            -30 to 30VDC, Model depended!

  • Input Impedance                       >10K Ohms, Model depended!

  • Output voltage                         Industrial standard 0-10VDC Model depended!

  • PCB material                             FR4

  • Input Filter                               L.P.F. 2Hz

  • Max power consumption              0.5W

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 20 [V]

  • Power source                            24VAC +/-12%, 50/60Hz, 0.6VA or 24VDC @ 45mA filtered

  • Power indicator                          LED Red

  • Adjustment                               Via trimmer for ZERO & SPAN

  • Mounting                                  Four 0.125” (3.1mm) holes with centers distance of 1.1" & 2.1"

  • Board dimensions                       1.650" & 2.825" (41.9mm * 71.8mm)

  • Manufactured                           100% in USA
