Industrial OEM Aqua Quality Sequential Display Temperature, pH and  Chlorine (PPM) Transducer driver Interface Board.



The computers board is designed to perform temperature (F or C) pH and Chlorine (via our ORP electrode) Display and signals transmitter.



If used properly, it will eliminate the need for expensive display boards and instruments, which would otherwise be needed to carry out the same tasks, or a pricey PLC.



The board is easy to install, setup and operate. If you want to perform professional water electrochemistry pH, ORP and temperature readings, the display board offers the features you need.



Mounted easily via 0.125" mounting holes using 4-40 screws (optional) and wire power via convenient conventional industrial standards cage up terminal blocks (TB). All input connections pH, ORP and temperature via conveniently front mounted BNC connectors.



Setting the board is simple, just follow these easy steps:



1. Connect pH, ORP and Temperature electrodes.



2. Power the board of 10 to 24V AC or DC or 12V PV or 12V Car Battery.. Preferred stable 24V DC (industrial standard).



The board is ideal when monitoring water chemicals in a pool, hot-tub, water cooling towers, water supply, waste water treatment, etc.



Please drop us a line at HVAC@eidusa.com and let us know where you use this unique display/transmitter board. Or, of course, if you have any adjustments deemed important--one of our OEM engineers will be happy to help you achieve them.

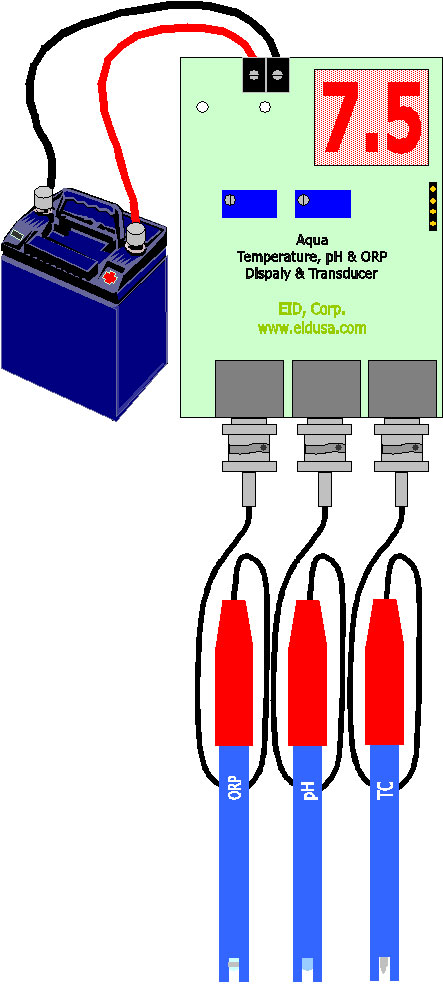

Shown above configured for ORP, pH and Temperature electrodes power of 24V DC





Software Display Sequential readings of Temperature, pH, Chlorine (PPM)...



Display sequential data sample:



Test , 1 second delay, 72, 1 second delay, oF, 1 second delay, 7.5, 1 second delay, pH, 1 second delay, 3.0, 1 second delay, PP, 1 Second delay...and again Test , 1 second delay ...



Where; the PP is for Part per Million. and test displays as 9 times clock wise (CW) moving square.



Note: OEM Software sold separately.





Display Electrodes Interface

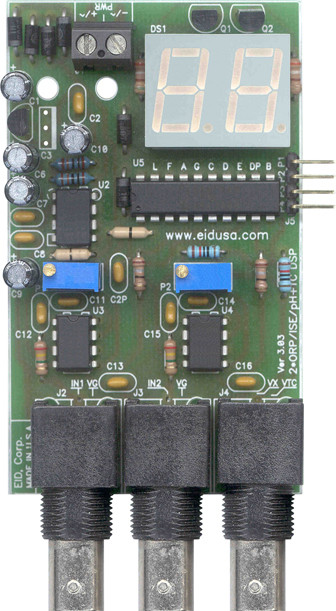

Figure A shown above configured for 3 electrochemistry electrodes ORP, pH and Temperature



Professional electrochemistry no problems; measure and display pH, Temperature, ORP directly your pool or water supply.



INTERFACER-HIVV1 Features



  • Built-in power regulator.

  • Unity gain amplifier.

    •

  • Offset null adjustment via trimmer.

    •

  • Also, designed to operate from 12VDC or 24VDC car battery via our 12v to 9V adapter for remote applications.

Specifications

  • Input resistance                      > 10^16 Ohms

  • TC Input                                10K Thermistor carve 3

  • Input voltage                          +/-2.5V

  • Output voltage                        VG +/-2.5V

  • PCB material                            FR4

  • Output Voltage                        Float (VG)

  • Max power consumption            0.1W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Power source                          9V battery or EID's 9V voltage simulator

  • Power indicator                        LED Red

  • Manufactured                          100% in USA



Display applications:

  • Waste water treatment and water conservation monitoring.

  • Drinking water quality monitoring.

  • Aqua low sample volume monitoring.

  • Dairy; Cheese, Milk etc. monitoring.

  • Mine water display and analysis.

  • Pool water monitoring.

  • Fish Tank water monitoring.

  • Pond water monitoring.

  • Lake water monitoring.

  • Groundwater water monitoring.

  • Streams and rivers water monitoring.

  • Coastal shore water monitoring.

  • Salt water monitoring.

  • Aquaculture water system management.

  • Construction water monitoring.

  • Surface water monitoring.



Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

DISPLAY board pH/ORP/temperature 2 digits, 7 seg.

EID-DSP-PHORPTMP-2DIGTB

call or e-mail

DISPLAY board pH/ORP/temperature 2 digits, 7 seg. software

EID-DSP-PHORPTMP-2DIGSW

call or e-mail

  •
