METER-PH1D & ORP1D  - OEM pH and ORP Meters.

The METER-PH/ORP/1D meter system is designed to perform pH or ORP measurement functions.



So, if you want to do professional pH, ORP or ISE related data measurements and analysis, METRR-PH1D & ORP1D offers the features you need, all within the familiar function; STD, Temp and Slope calibrations.



The METRR-PH1D/ORP1D are easy-to-install, and easy-to-use unit. You will be able to control all functions from front panel.

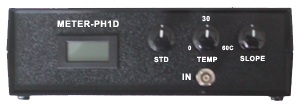

pH Desktop meter

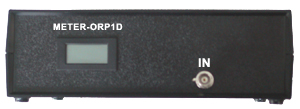

ORP/ISE (mV) Desktop meter

METER-PH1D & METER-ORP1D Features

  • Displaying pH/mV on front panel mounted LCD

  • Easy configuration

  • Small size unit fits almost anywhere, on your laboratory table on in the field.

  • 2 point calibration.

  • Compatible with pH and ORP sensors from many sensor manufacturers.

  • The unit uses Nerstian's slope factor for maximum accuracy.

  • Nerstian's equation parameters can be selected manually

  • Linear scale factor 0 to 14 pH.

  • Rated for full -2 to 19.999 pH range.

  • Operates on low voltage and low current.

Specifications

  • input voltage scale                 +/- 2500.000 [mV]

  • pH scale                               -2 to 19 [pH]

  • Dimension                              8” x 2.75” x 6”

  • Max power consumption           1.25W

  • Storage temperature               40 - 70 [F]

  • Operating temperature             50 - 70 [F]

  • low board DC voltage               +9 [V]

  • Temp calibration                     0 to 60[C]

Temperature:

  • Range (linear factor)                0 to 60 [C]

  • Resolution                               0.1 [C]

  • Relative accuracy                    +/- 0.1 [C]

pH:

  • Range                                    0.000 to 14.000 [pH]

  • Resolution                               0.01 [pH]

  • Relative accuracy                     +/- 0.019 [pH]

  • Accuracy at 25 C                     +/- 0.015 [pH]

  • Accuracy  at full range              +/- 0.1 [pH]

Milli-volts:

  • Range (linear factor)                 +/- 2500 [mV]

  • Resolution                                0.10 [mV]

  • Relative accuracy                     +/- 0.15 [mV]

Pricing

* Prices are subject to change without notice.

   Additional 10% discount with student ID USA only.

Description

SKU #

Price

METER-PH1D desktop pH meter

EID-METER-PH1-A00D

279.00

METER-PH1D desktop ORP meter

EID-METER-ORP-A01D

259.00

Battery simulator, Input up to 24V DC

output  +9VDC /0.5A Fully assembled



EID-K-VRG-09VA



$32.00

BNC TERMINATION CAP (OPTION)

EID-0PROBER-0BNC-0002

4.99

TRAINING (OPTION, PER HOUR)

EID-METER-D0PH-0ORP

49.34

  •
