INTERFACER – DLSRD. Dual channel Liquid Sensitive Relay with per channel power off Delay control Board module.

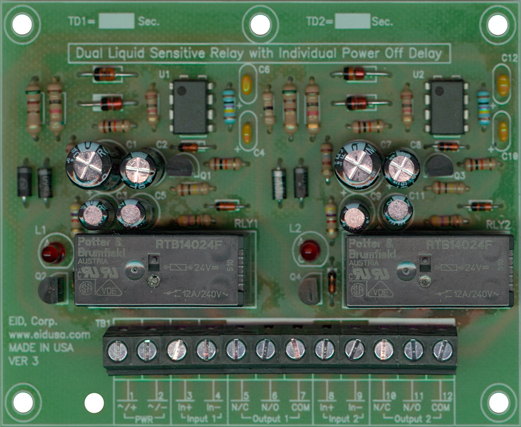

Dual liquid sensitive relays interface board module with per channel configure delay is shown above in a standard configuration with two P&B 240V/12A rated relay and dual 30 second power off delays



The INTERFACER-DLSRD board is designed to perform dual relay switching function based on liquid detection for dual pump engagements or dual valve shut-off, with unique delay function



The board power from industrial industrial 24V AC or DC or 28V AC or DC



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The INTERFACER-DLSRD is easy to install, setup and operate. If you want to do professional water or liquid detection and relay switching, The INTERFACER-DLSRD offers the features you need.



Mounted easily via four 0.125" mounting holes. or via two 0.125" mounting holes.



Setting the board is simple Just follow these easy steps



1. Connect the Water sensitive or liquid level sensor to the inputs.



2. Connect your valve or pump to the relay outputs.



3. Connect the board to 24V, 28V DC or AC.



The board monitors the liquid level or liquid sensitive sensor and both the LED and their corresponding relay will turn on upon water detection. While the relay continue to engage X second after sensor is no longer active.



The board is ideal when liquid detection pump is required i.e. circulating pumps, water cooling-tower, boat bilge pump, RV shower pump and more.



Please drop us a line at sales@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.






INTERFACER-DLSRD Features



  • Input any EID's Water sensitive sensors W9.

  • Power via 24V or 28V DC or AC industrial standards.

  • Can be customized to accommodate your voltage or shut-off valve or pump requirements.

  • Relay on LED indicator

  • Power off delay

Specifications

  • PCB material: FR4

  • Input: W9X or W7 sensor, Input impedance >30M Ohms

  • Max power consumption: 1W

  • Set point: 0-100%

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: 24 [V]

  • Power source: 28V, 24V AC +/-5%, 50/60Hz, 2.2VA or 24V, 28V VDC 1.7VA

  • Mounting: Four/or Two 0.125” holes

  • Manufactured: 100% in U.S.A.

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.



Description

SKU #

Price

INTERFACER-DLSRD dual liquid detection to relays on/off with dual 30 second delay

EID-INTERF-ECER-DLSRD-D30

$245.97

INTERFACER-DLSRD dual liquid detection to relays on/off with dual 20 second delay

EID-INTERF-ECER-DLSRD-D20

$245.97

INTERFACER-DLSRD dual liquid detection to relays on/off with dual 15 second delay

EID-INTERF-ECER-DLSRD-D15

$245.97

INTERFACER-DLSRD dual liquid detection to relays on/off with dual 10 second delay

EID-INTERF-ECER-DLSRD-D10

$245.97

INTERFACER-DLSRD dual liquid detection to relays on/off with dual 5 second delay

EID-INTERF-ECER-DLSRD-D5

$245.97

INTERFACER-DLSRD dual liquid detection to relays on/off with no delay

EID-INTERF-ECER-DLSRD-DN

$301.44

INTERFACER-DLSRD dual liquid detection to relays on/off with dual X (customer define) delay

EID-INTERF-ECER-DLSRD-DX

$301.83

SENSER-HUMW9X High accuracy high sensitive large water detection board.

EID-SENSER-HUMW9X

$6.23

  •
