INTERFACER-PRX  Pilot Relay Boards



The INTERFACER-PRX boards are designed to turn relay on and off as a direct response to industrial standard low voltage (0 to 5V or 0-10V DC) or current (4-20mA) input.



If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



INTERFACER-PRX is easy to install, setup and operate. If you want to perform professional remote voltage switching related functions, INTERFACER-PRX offers the features you need. Mounted easily via up to six 0.125" mounting holes.







Model A                                          Model B                                          Model C

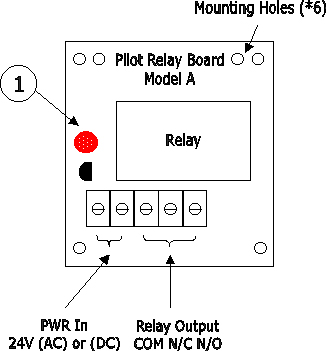

Model A: The relay will switch "on" when 24V AC or DC is applied and "off" when the power source is removed. Ideally for remote start/stop control.



1. The unique function LED indicates when the relay turns on and off on model A

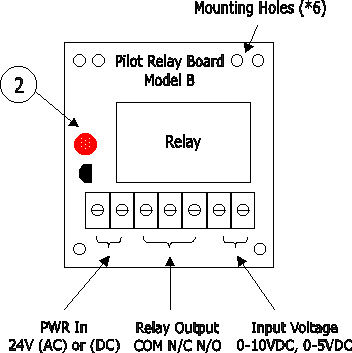

Model B: The relay will switch "on" when the input voltage applied is larger than 4V DC, and it will turn "off" when it drops down below 2V DC. Ideally for use with conjunction with controller and/or PLC with analog voltage controlled outputs of 0-5V or 0-10V DC.



2. The unique function LED indicates when the "relay coil is OK" on model B (dim when input < 2V DC).

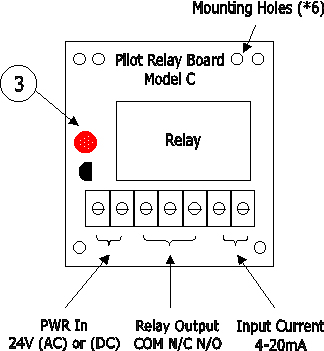

Model C: The relay will switch "on" when the input current applied is 20mA, turn "off" when the input current is 4mA. Ideally for use with conjunction with controller and/or PLC with analog current loop controlled outputs of 4-20mA.



3. The unique function LED indicates when the "relay coil is OK" on model C (dim when input < 2V DC).


Note: All models are power off 24V AC or DC, and all relay output are rated 12A/125V. The unique function LED indicates when the relay turns on and off on model A and "relay coil OK" on model B and C (dim when input voltage applied is below 2V DC).




Mounting

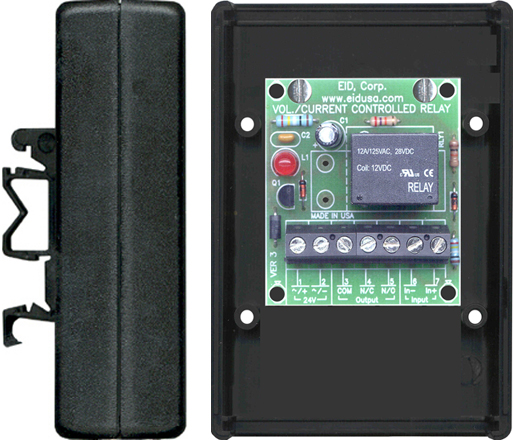

Board, shown above mounted in plastic enclosure (EID-1593 series enclosure) optional.



Note: Din Rail mounting kit and Plastic enclosure sold separately (for demonstration only).



For our 110V or 220V to 12VAC, 14VAC, 16VAC, 18VAC or 24VAC power down transformer (Class 2 type transformers EID-BP series) click Here




INTERFACER-LPRX Features



  • Built-in relay on LED indicator model A only.  Built-in relay coil OK LED indicator model B and C only.

  • Also, designed to operate from 24VDC or two series connected 12VDC car battery.

Specifications

  • PCB material                            FR4

  • Relay switch min. rating             110V/12A other values are available

  • Max power consumption             0.5W

  • Storage temperature                 40 - 70   [F]

  • Operating temperature               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                15 [VDC]

  • Power source                           24V

  • Wires Connections                    Via terminal-block

  • Manufactured                          100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

INTERFACER-PRX 24V AC DC Pilot relay board

EID-INTERF-ACE-PRX-24

$37.29

NTERFACER-PRX 24V AC DC Pilot relay board with 6" wires (6).

EID-INTERF-ACE-PRX-24W

$46.32

INTERFACER-PRX 0 to 5/10 VDC Pilot relay board

EID-INTERF-ACE-PRX-VX

$39.93

NTERFACER-PRX 0 to 5/10 VDC AC DC Pilot relay board with 6" wires (6).

EID-INTERF-ACE-PRX-VXW

$49.20

INTERFACER-PRX 4-20mA Pilot relay board

EID-INTERF-ACE-PRX-420X

$39.99

NTERFACER-PRX 4-20mA Pilot relay board with 6" wires (6).

EID-INTERF-ACE-PRX-420W

$49.99

  •
