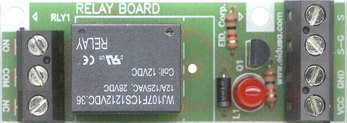

INTERFACER-LHR1  LO-HI input relay boards



The INTERFACER-LHR1 boards are designed to turn relay on and off as a direct response to low voltage input.



If used properly, it will eliminate the need for expensive unit, which would otherwise be needed to carry out the same tasks.



INTERFACER-LHR1 is easy to install, setup and operate. If you want to do professional high voltage switching related functions, INTERFACER-LHR1 offers the features you need. Mounted easily via two 0.125" mounting holes.

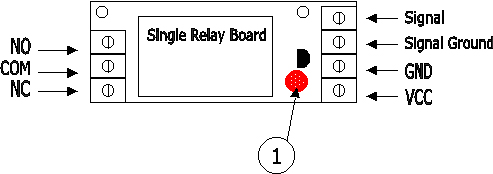

1. LED - Relay on indicator



INTERFACER-LHR1 Features



  • Built-in relay on LED indicator.

  • Also, designed to operate from 12VDC car battery

Specifications

  • PCB material                            FR4

  • Relay switch min. rating             110V/3A other values are available

  • Max power consumption            0.5W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               12 [VDC]

  • Power source                          12V battery or 12VDC

  • Relay on  indicator                   LED Green or Red

  • Wires Connections                   Via terminal-block

  • Manufactured                          100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

INTERFACER-LHR1 Single Relay board

EID-INTERF-ACE-LHR1

$24.00

NTERFACER-LHR1 Single Relay board with 6" wires (6).

EID-INTERF-ACE-LHR1-W

$36.00

  •
