INTERFACER – SLSRD. Single channel Liquid Sensitive Relay with power off Delay control Board module.



The INTERFACER-SLSRD board is designed to perform relay switching function based on liquid detection for pump engage or valve shut-off, with unique delay function



The board power from industrial industrial 24V AC or DC or 28V AC or DC



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The INTERFACER-SLSRD is easy to install, setup and operate. If you want to do professional water or liquid detection and relay switching, The INTERFACER-SLSRD offers the features you need.



Mounted easily via four 0.125" mounting holes. or via two 0.125" mounting holes to our modified enclosure with din rail EID-1593LBK and EID-1427DIN (both sold separately).



Setting the board is simple Just follow these easy steps



1. Connect the Water sensitive sensor to the input.



2. Connect your valve or pump to the relay output.



3. Connect the board to 24V, 28V DC or AC.



The board monitors the liquid level or liquid sensitive sensor and both the LED and the  relay will turn on upon water detection. While the relay continue to engage 30 second after sensor is no longer active.

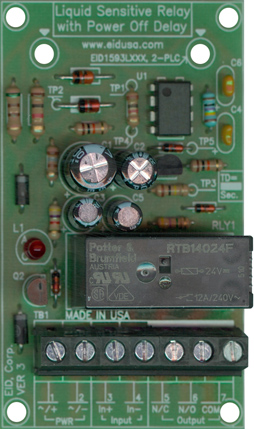

Shown above in a standard configuration with P&B 240V/12A rated relay and 30 second power off delay

The board is ideal when liquid detection pump is required i.e. circulating pumps, water cooling-tower, boat bilge pump, RV shower pump and more.



Please drop us a line at sales@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.






Mounting

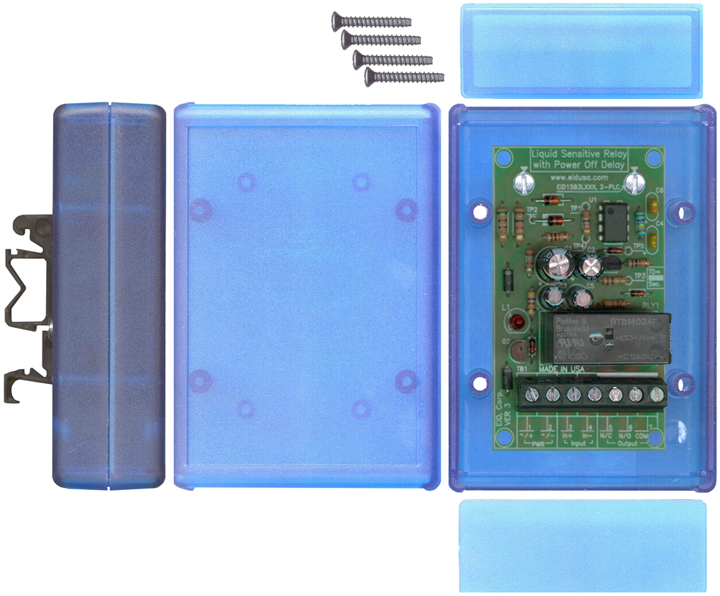

Shown above encapsulated in plastic enclosure (EID-1593 series enclosure) with din-rail-clip (optional).



Note:



Plastic enclosure, wires and Din-Rail-clip are sold separately (for demonstration only).






INTERFACER-SLSRD Features



  • Input any EID's Water sensitive sensors W9.

  • Power via 24V or 28V DC or AC industrial standards.

  • Can be customized to accommodate your voltage or shut-off valve requirements.

  • Relay on LED indicator

  • Power off delay

Specifications

  • PCB material: FR4

  • Input: W9X or W7 sensor, Input impedance >30M Ohms

  • Max power consumption: 1W

  • Set point: 0-100%

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: 24 [V]

  • Power source: 28VAC or 24VAC +/-5%, 50/60Hz, 1.7VA or 24V, 28V VDC 1.4VA

  • Mounting: Four/or Two 0.125” holes

  • Manufactured: 100% in U.S.A.

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.



Description

SKU #

Price

INTERFACER-SLSRD liquid detection to relay on/off with 30 second delay

EID-INTERF-ECER-SLSRD-D30

$135.54

INTERFACER-SLSRD liquid detection to relay on/off with 20 second delay

EID-INTERF-ECER-SLSRD-D20

$135.54

INTERFACER-SLSRD liquid detection to relay on/off with 15 second delay

EID-INTERF-ECER-SLSRD-D15

$135.54

INTERFACER-SLSRD liquid detection to relay on/off with 10 second delay

EID-INTERF-ECER-SLSRD-D10

$135.54

INTERFACER-SLSRD liquid detection to relay on/off with 5 second delay

EID-INTERF-ECER-SLSRD-D5

$135.54

INTERFACER-SLSRD liquid detection to relay on/off with no delay

EID-INTERF-ECER-SLSRD-DN

$174.45

INTERFACER-SLSRD liquid detection to relay on/off with X delay

EID-INTERF-ECER-SLSRD-DX

$174.45

SENSER-HUMW9X High accuracy high sensitive large water/humidity detection board.

EID-SENSER-HUMW9X

$9.23

  •
